wood disc chipper
High Efficiency Wood Chipper Shredder branch wood grinder crusher tree branch crusher chipper Disc Chipper
Disc Chipper is a series of special equipment for wood crushing invented after years of research and design according to the needs of China’s industrial production. Due to the advantages of reasonable design, compact structure, durability and high production efficiency, after popularization and use, the effect is good. The whole set of equipment is driven by only one motor, with low noise, simple structure, compact layout, low price, stable operation, low energy consumption, high output, good quality of sawdust products and low processing cost.
wood disc chipper for wood log
Disc chipper used to make wood chips, wood pieces which specially designed for round logs, square blocks, wood staff and so on, The efficiency is much higher than the ordinary one.
Operation easy, maintenance simple, life long and the noise is low. They would be the best choice for factories and families which deal with wood scraps. It is your best choice to process wood products.
Disc chipper is a kind of special equipment,which is producing wood chips. It can be wood, wood and others,cutting the growth of the small-diameter uniform,cut flat,uniform thickness of high-quality industrial wood and so on.
Final Size: Adjustable
Power: Motor, Diesel engine, Mobile, At option.
Machine Color: As per client requirement.
Technical data
|
Model |
Feed Inlet(mm) |
Blades |
Working Capacity |
Power |
Speed |
Machine Weight |
| 400 |
150*150 |
3 |
1-2 t/h |
15 kw |
650 r/min |
160 kg |
| 600 |
180*150 |
3 |
2-3 t/h |
18 kw |
600 r/min |
380 kg |
| 800 |
200*200 |
4 |
4-5 t/h |
30 kw |
550 r/min |
520 kg |
| 950 |
230*250 |
4 |
6-8 t/h |
37 kw |
550 r/min |
950 kg |
| 1150 |
280*300 |
4-6 |
10 t/h |
75 kw |
500 r/min |
2000 kg |
| 1400 |
320*350 |
4-6 |
15-16 t/h |
110 kw |
500 r/min |
2800 kg |
| 1600 |
400*430 |
4-6 |
20 t/h |
132 kw |
500 r/min |
4600 kg |
| 1800 |
550*550 |
4-6 |
25 t/h |
160 kw |
500 r/min |
6500 kg |
Buying Guide:
If you are looking for wood chipper machine ,pls tell us below requirement :
1.Your raw material size ,ex Diameter, legnth
2.Power option motor drive or diesel engine,
3.Whether need wheels or length the output pipe or not
4.Capacity required kg/h
For us check and recommend you a right model Chipper Machine .

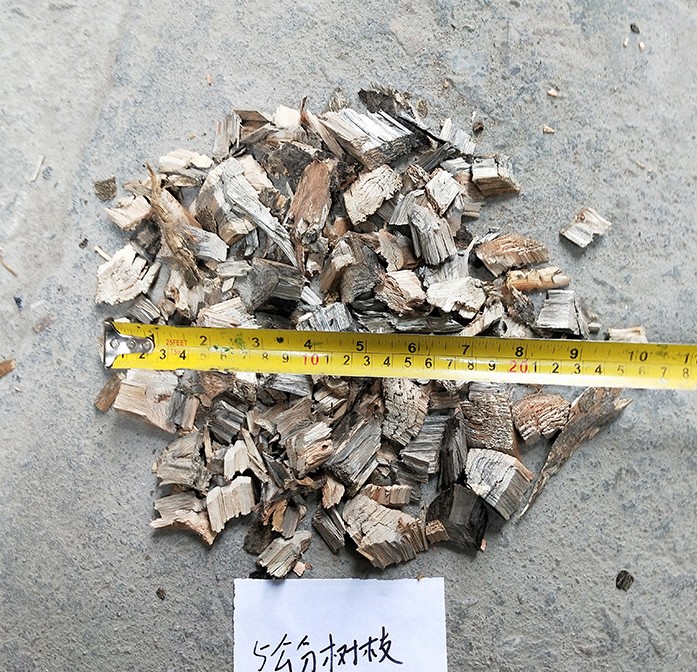

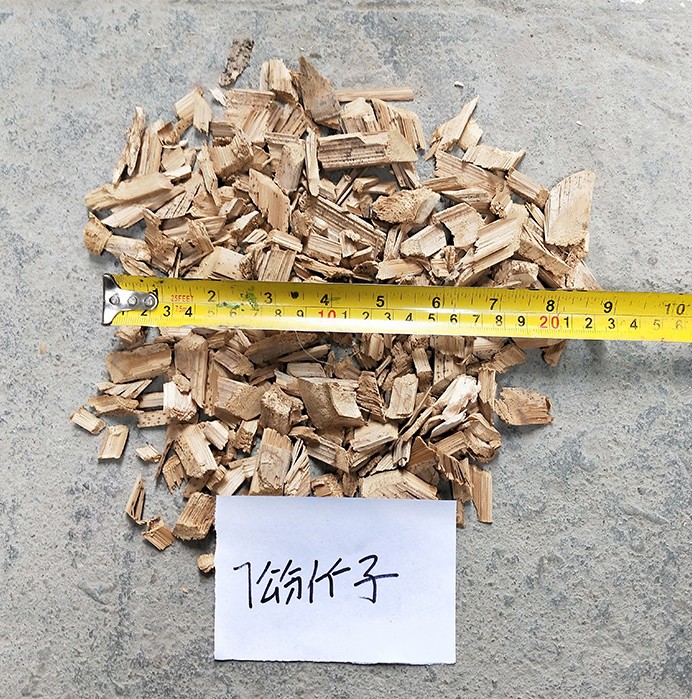

Application for Crushed chips :
- Organic fertilizer: free decay into surface can be formed a good organic fertilizer.
- Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive
- Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.
- Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.
- It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .
