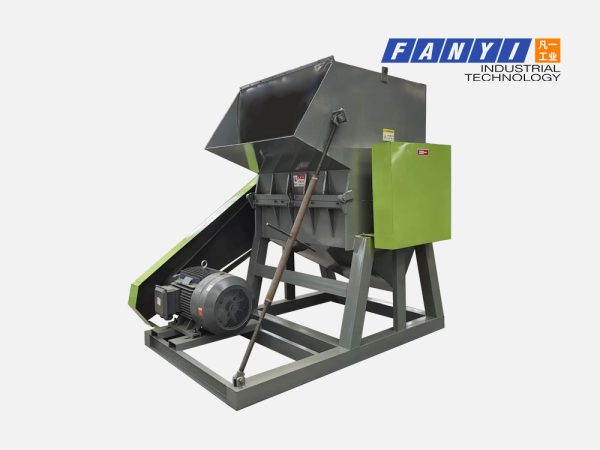

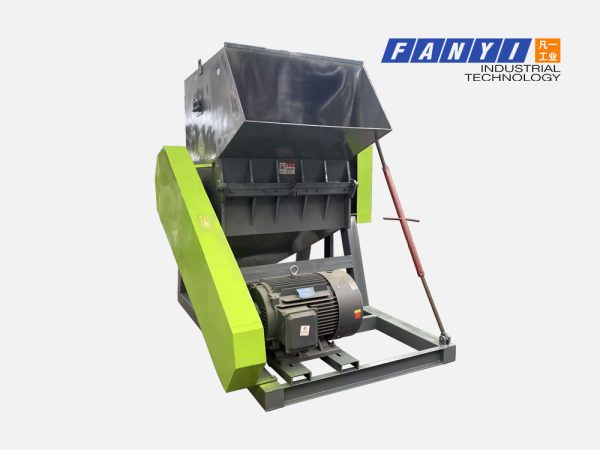

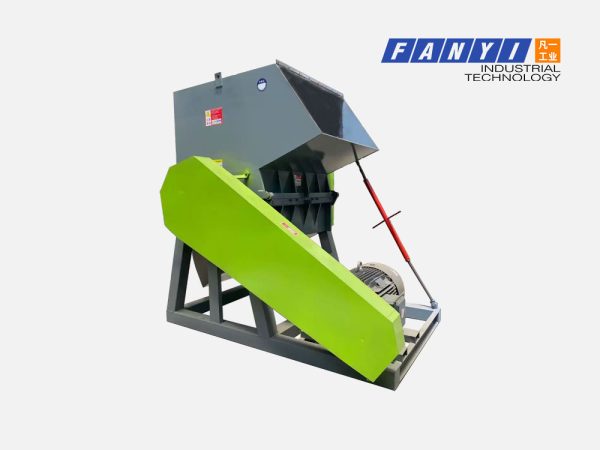

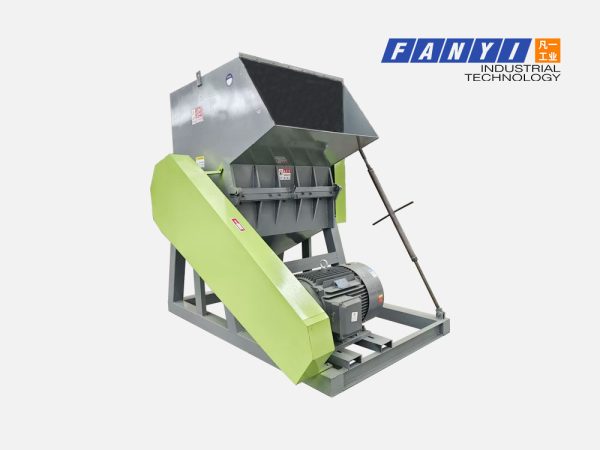

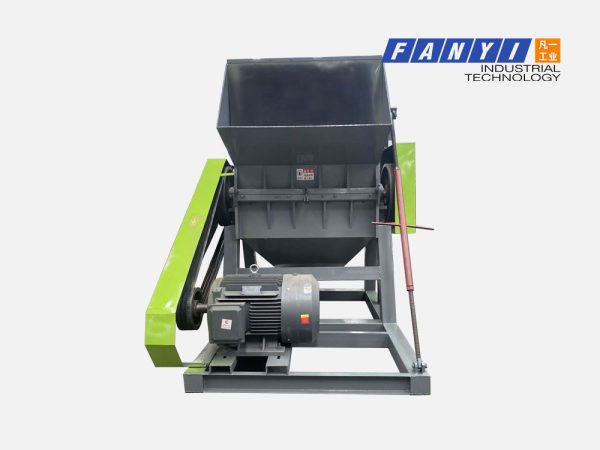

Plastic Crusher

Plastic Shredder Recycling Disintegrator Plastic Crusher Grinding Granulator Machine Heavy Duty Grinder for PE PP PVC PET

Plastic crusher is mainly used for crushing plastic such as plastic film, bottles , tubes, rods, silk thread. Shattered pieces can be directly used for extruder or injection molding, and can also be recycled through foundation granulation. Plastic crusher is also a peripheral equipment injection molding machine, can be broken and recycled injection molding machine produced defective products and nozzle material machine.
The crushing capacity can reach 1-2 times the same type in the industry.



Category:

【Multifunctional Grinder】Multifunctional crusher meets various crushing needs. It can shred wood, plastic, nylon products, cloth, paper, circuit boards, PP/PC, PA/PE, PVC, PET/ PS, FRP, aluminum bottle caps, spices, corn, grain and etc.
【Alloy Steel Blade】The cutter is made of special stainless steel, which is extremely sharp and durable. The cutter gap is adjustable, and the blade can be disassembled and polished after it becomes dull.
【Low noise 】The machine crushing room is made of double-layer sound insulation and thickened double-layer plates, which is powerful and quiet, and low noise. The hopper, main body and filter screen can be disassembled for easy cleaning and maintenance.
【Reliable and Stable】Split design. High quality pure copper motor, strong power, stable performance, high-strength steel screws used to fix the blade and tool holder, with large bearing capacity and not easy to fall off.
【Secure and Warranty】The motor of the crusher has overload protection and power chain protection device, which doubles the motor protection and user safety.We offer lifetime after-sales service.

Main features and advantages

  1. This type of crushing and cleaning crusher adopts an integrated structure, due to which the processed materials can be cleaned twice at the same time
  2. The main body is welded by a uniquely designed double-layer steel plate , and the interlayer is welded to strengthen the vertical plate, which improves the fatigue resistance and impact resistance of the body and effective sound insulation. Theeasy-to-disassemble movable screen bottom can be replaced at any time according to different material specifications.
  3. This model is equipped with an automatic opening device for tool change or fastening bolts without manual opening.

Plastic crusher is designed to grind various plastics such as PE, PP, PVC, PET, rubber, ABS, PS, PC, etc. The pulverized particles can be directly used as production raw materials. It is widely used for recycling plastic bottles, plastic films, plastic pipes, rubbers and other waste materials.

Feeding materials

Plastic Crusher

Output

Plastic Crusher

Technical Parameters

Device name Equipment specifications Number of tools >Number of feed particles（mm) Number of discharged particles（mm) Motor power(Kw) Overall dimensions（mm)
Grinder Type 600 6 moving knives 4 fixed knives 600-800 8-30 15 Length: 1300 Width: 1100 Height: 1600
Grinder Type 800 6 moving knives 4 fixed knives 800-1000 8-30 30 Length：1500 Width：1300 Height：1800
Grinder Type1000 6 moving knives 4 fixed knives 1000-1200 8-30 45 Length：1700 Width：1500 Height：2200
Grinder Type1200 6 moving knives 4 fixed knives 1200-1400 8-30 55 Length：1800 Width：1700 Height：2200

Application Range

This waste pe pp plastic film grinder machine is mainly used for size reduction of soft PP/PE plastic film, plastic bags, woven bags, as well as rigid plastic PET bottles, PP/PE bottles, buckets, hollow containers and so on.
