Industrial wood chipper

Description of Industrial Drum Wood Chipper:

1. Wood chipper/wood chipper shredder is mainly used to crush big wood logs or wood timber, plywood, wood branches, furniture waste into small chips, the thickness of last chips is 3mm-5mm,length and width is about 15-30mm, it is wood chips not wood shavings. By adjusting knives gap, outlet chips dimension will be adjusted.
2. Wood chipper/wood chipper machine contains 4m long feeding belt conveyor, when conveying logs, the speed can be adjusted also it can connect with outlet conveyor to transport away crushed wood chips.
3. Wood chipper/wood chipper machine knives can be sharpened by knives sharpener, the rotary blade must be sharpened every day, it can be used for 40-45 days, the fixed blade has 4 month service life.

1.Technical Parameter of Industry Drum Wood Chipper

Model	Power	Output(t/h)	Input Size(cm)	Rotary Blade(pcs)	Size of Shaping
BX216	55	5-8	23*50	2/4/6	15-30mm
BX218	110	8-15	30*68	2/4/6/7	15-30mm
BX2113	220	15-25	38*80	2/4*2	15-30mm

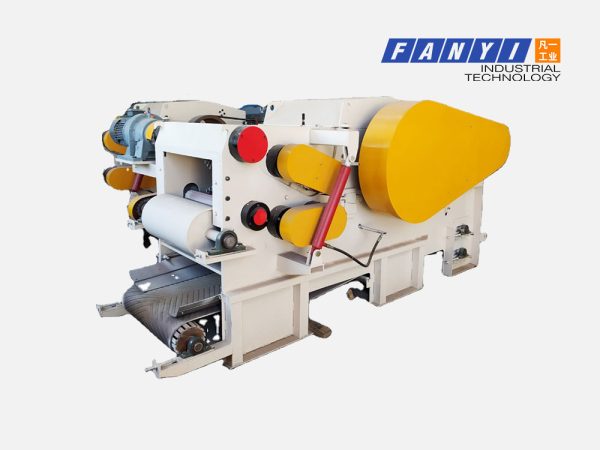

BX216 Drum Wood Chipper
Motor	Siemens
Rotary Knife	2/4/6pcs
Fited Knife	1pcs
Rotating speed	550r/min
Knife Material	Manganese steel/H13

2.Raw of Material/Finished Product Display Wood Chipper

Various wood logs, small used wood pallet, wood slabs, wood blocks, bamboo straw, corn stalks etc.

3.Parts Show of Drum Wood Chipper

1. We use Siemens motor, stable and durable.
2. Guomao reducer, the leader brand in China, very good quality!
3. Q235 Carbon steel,4*4cm, 3-10cm all is ok.
4. The feeding roller is large in diameter, heavy in weight and has coarse teeth on the surface.
5. The blade is made of manganese steel, Wear-resistant.
6. Full solid knife roller, durable and strong.

4.Main Features of Wood Chipper

1. New design blade rotor, blades are easy to replaceable.
2. Cover of crushing chamber could be opened by hydraulic,ease for maintenance and changeble blades.
3. Screen mesh size is customized for different requirements on size of end product.Hydraulic buffer system ensures smooth operation
4. Reverse feeding device,belt conveyor can be reversed positively.This device can protect machine,when large wood is encountered
5. Higher capacity than the traditional type, larger feeding size,could chipping log diameter 230-500mm

5.Advantage of Wood Chipper Machine

1. Drum wood chipper machine series work with advanced structure.
2. produce high quality wood chips.
3. widely applicantion range.
4. easy operation.

Packaging & Shipping

Wood Chipper Delivery:

The wood chipper is packed in wooden boxes, and the electric control cabinet and other parts are packaged in bubble bags.

Packaging
Size	3.2*1.9*1.5m
Weight	5-8T
Packaging Details	BX 216 wood chipper need 20 GP container BX218 wood chipper need 40 GP container BX2113 wood chipper need 40 OT container
