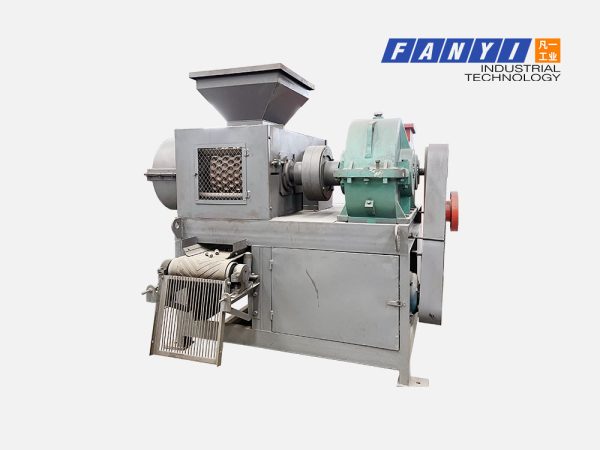

Briquette Machine

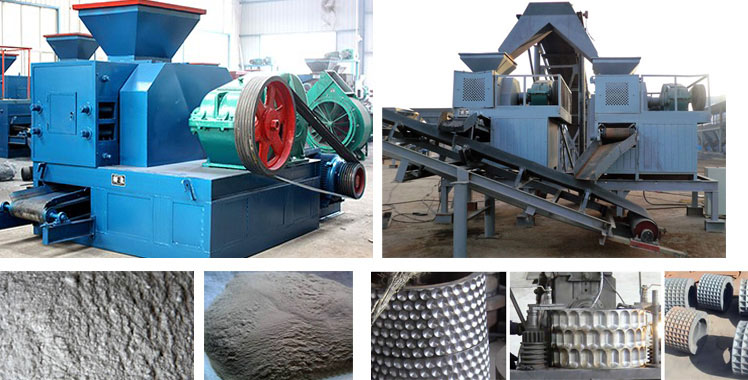

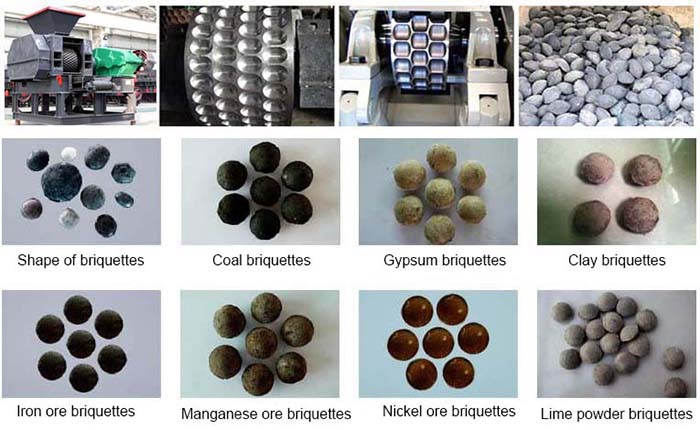

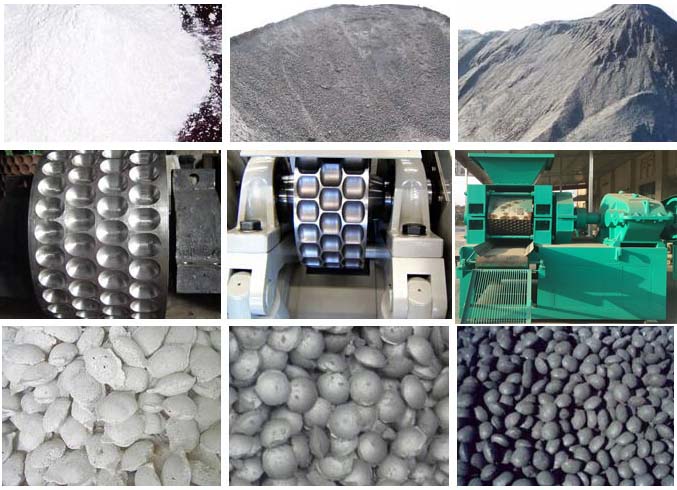

Standard Briquette Machine, with other names of briquette machine, briquette press machine and briquette making machine. The briquette making machine or briquette press machine can be used to press various powders, scrap, waste residue such as pulverized coal, iron powder, coking coal, aluminum ash, iron filings, iron oxide scale, carbon dust, powdered carbon, slag, gypsum, gangue, sludge, kaolin, active carbon, coke breeze and so on. The briquette press machines are widely used in refractory, powder plant, metallurgical, chemical engineering, energy, transportation, heating and other industries. The molding materials that made by the briquette making machine are energy conservation and environment protection and easy to carry. The briquette machine also improves the utilization rate of waste, which has significant economic benefits and social benefits.

Structure Principle of Standard Briquette Machine

The roller sheet of the briquetting machine is cast by manganese, the hardness of which can reach up to 58 degrees after special processing. Because the roller sheet adopts combination assembly, it is adjustable after abrasion. The buffer device in the briquette machine can protect the equipment from being impacted by the hard object to a certain extent.

Working Principle of Standard Briquette Machine

The briquette machine uses main motor to transmit the motive power to speed reducer through the V-shape triangle belt and to main drive spindle through coupling, and then uses the main driven split gear to send it to the main driven spindle to make the two rollers fall into step (inverted running with uniform speed).

The driven roller is held by the piston of the hydraulic oil cylinder, the hydraulic system completes the circuit and the control valve in the hydraulic system keeps the system pressure. Materials are entered evenly into the feeding hopper of briquette machine through the rationing equipment, and then poured into the breaker rolls evenly adjusted by the regulating sluice. The two big rollers push raw materials with high pressure force, to press them into briquettes, and successfully complete drop from rollers.



Technical Data

Model	Roller Dia.r ( mm )	Roller Width ( mm )	Roller Material	Shaft Speed ( r/min )	Reducer Model	Pressure Form	Motor Power ( kw )	Capacity (t/h)
YQJ-290	290	200	65Mn	18	ZQ350	Constant Wedge Pressure	5.5	1-2
YQJ-360	360	250	65Mn	18	ZQ400	Constant Wedge Pressure	7.5	2-4
YQJ-400	400	250	65Mn	18	ZQ400	Constant Wedge Pressure	11	4-6
YQJ-500	500	300	65Mn	13	ZQ500	Constant Wedge Pressure	18.5	6-10
YQJ-650	650	336	65Mn	13	ZQ650	Constant Wedge Pressure	30	10-15



Briquette machine technical parameter:

Model	Roller Dia. (mm)	Roller Width(mm)	Motor Power (kw)	Shaft Speed (r/min)	Reducer Model	Capacity (t/h)	Pressure Form	Roller Material
YYQ-476	476	210	22/1.5	15	ZQ500	3-6	Hydraulic Pressure	65Mn
YYQ -476	476	260	30/1.5	15	ZQ650	4-8	Hydraulic Pressure	9Cr2M0
YYQ -500	500	300	30/1.5	15	ZQ650	5-9	Hydraulic Pressure	65Mn/9Cr2M0
YYQ -650	650	336	45/1.5	15	ZQ750	8-15	Hydraulic Pressure	65Mn
YYQ -672	672	275	75/1.5	13	ZQ1000	8-15	Hydraulic Pressure	9Cr2Mo
YYQ -750	750	400	55/1.5	13	ZQ850	15-20	Hydraulic Pressure	65Mn/9Cr2Mo
YYQ -850	850	500	75/1.5	10	ZQ850	20-30	Hydraulic Pressure	65Mn/9Cr2M0
YYQ-1000	1000	650	110/1.5	10	ZQ1000	30-50	Hydraulic Pressure	65Mn/9Cr2M0
