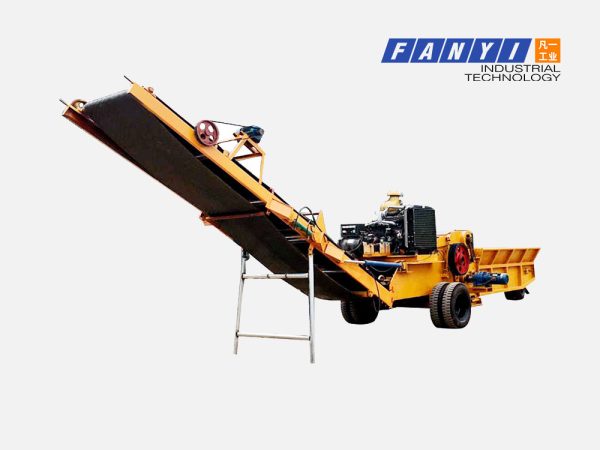

1400-600 Mobile Wood Crusher

Category:

1400-600 Mobile Wood Crusher is mainly used for waste plywood, wasted wood pallet, tree bark, slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding conveyor system, folding discharge rack and intelligent electrical control. Mobile Diesel Crusher is mainly used for places with no power output (Gobi desert, hills, woodland, hills, etc.), suitable for processing logs, branches, straw, vegetables, landscaping, garbage crushing etc.; All types of crushers and chippers can be made into a mobile folding type, and there are three mobile forms: steel wire tires, crawlers and vehicles, customers can choose and match at customers’ requirements.

Technical Parameter Of Host System Equipment

Model FDY1400-600
Feeding Inlet 1400*600MM
Blade Roller Diameter 800MM
Blade Roller Speed 888 RPM
Capacity 15-20T/Hour
YG8 Hammer Blade Quantity OR Blades 22 pcs hammers or 2 sets blades
Max Processing Wood Diameter 300MM
Diesel Engine Power or Electric Power 400HP or 160KW
Wood Chipper Size 30-50 MM
Working Life Of THE Hammer Blades 4000T-6000T

Technical Parameter Of Feeding System

Model FDY1400-600
Slot Chain Plate Feeding Conveyor 1 Set
Feeding Motor Power 7.5KW+11KW
Chain Plate Width 1380MM
Conveyor Length 6000MM
Feeding Speed 2-18M/Min
Chain Material 16Mn
Position Limited Wheel 5
Gear Box Hard Teeth Faces

Technical Parameter Of Discharging System

Model FDY1400-600
Outlet Conveyor Belt 1Set
First Outlet Motor 4KW With Gear Box
Second Outlet Motor 5.5KW With Gear Box
Conveyor Material 14-16# Channel/ Square Tube
Conveyor Length*Width 10m*1.2m
Conveyor Material Nylon 4 Layer
Outlet Height 3800-4500MM

Intelligent Electronic Control System

Model FDY1400-600
Large Control Cabinet Fixed on the machine
Main Power Diesel engine +generator set
Feeding Speed Control Model Variable Frequency
Electrical Control Control Cabinet + Remote Control

High-Efficiency Hydraulic System

Model FDY1400-600
Control Model Solenoid Valve
Hydraulic Oil Pump 3KW
Hydraulic Oil Tank 60L
